Gamma Chamber Facility – ICAR-IIHR
Gamma Chamber facility is available at ICAR-IIHR

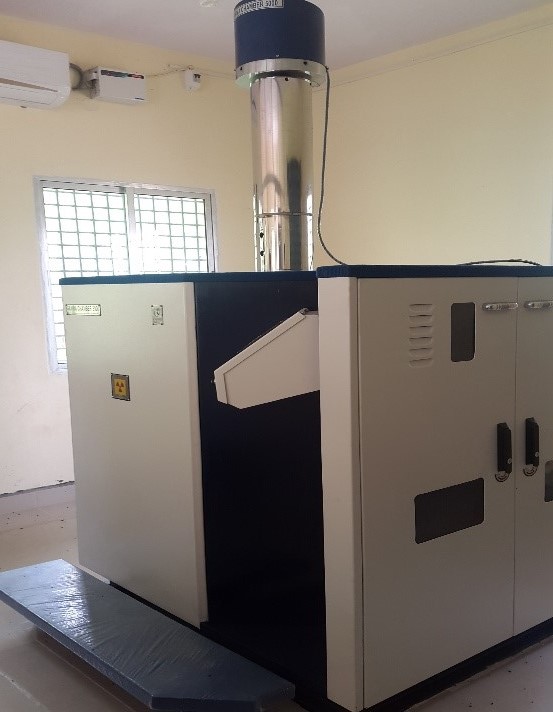

It is hereby informed that with consistent persuasion with BRIT and AERB,commissioning of Gamma Chamber 5000 installed at the Institute has been completed. The facility is now open for use.
Applications
Gamma Chamber is versatile equipment used for research studies in fields such as:
- Mutation breeding
- Irradiation of seeds, bulbs, tubers and scions
- Sterile male insect technique
- Biological and genetic effects of radiations
Gamma Chamber can also be used in many other research applications which require irradiation of materials with ionizing radiations to varying doses.
Specifications of Gamma Chamber 5000
| Maximum Co-60 source capacity | 518 TBq (14000 Ci) |
|---|---|
| Dose rate at maximum capacity | ~9 kGy/hr (0.9 Mega Rad/hr) at the centre of sample chamber |
| Irradiation volume | 5000 cc approx. |
| Size of sample chamber | 17.2 cm (dia) × 20.5 cm (ht) |
| Shielding material | Lead & Stainless Steel |
| Weight of the unit | 5600 kg approx. |
| Size of unit | 125 cm (L) × 106.5 cm (W) × 150 cm (H) |
| Timer range | 6 seconds onwards |
A nominal fee of Rs. 50/- is charged per sample per dose.
Contact Details
The Director
ICAR-IIHR, Hessaraghatta Lake Post
Bengaluru – 560 089
Tel: +91-80-23086100
Fax: +91-80-28466291
Email: iihrdirector@gmail.com
Slot / Appointment Booking
Dr. D. Kalaivanan
Senior Scientist
Mobile: +91 9986637407
Dr. Raghu BR
Scientist, Division of Vegetable Crops
Mobile: 9972008544
Revised Charges for Gamma Chamber Facility
| Radiation Intensity (Gy) | IIHR Staff / Students (Rs)* | Govt Institutions (Rs)** | Corporate (Rs)** |
|---|---|---|---|
| 0 – 100 | 100 | 100 | 500 |
| 100 – 500 | 100 | 200 | 1000 |
| 500 – 1000 | 100 | 500 | 1500 |
| > 1000 | 100 | 1000 | 2000 |
| *Inclusive of GST | **GST @18% extra | |||
